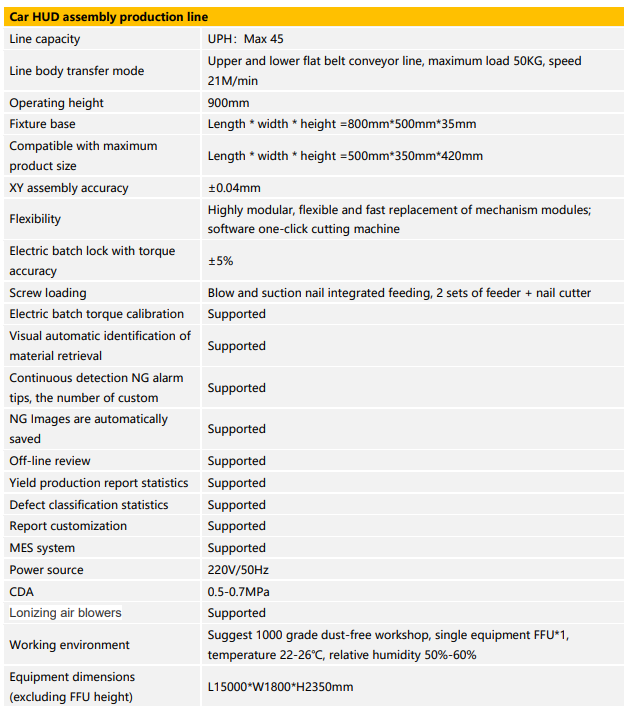

The HUD assembly line is a highly automated production line compatible with a maximum product size of 500*350*420, saving manpower and improving the quality and stability of the process. The line is mainly composed of transmission system, blow and suction nail integrated locking module, high-speed and high-precision assembly module, high-precision dispensing module, 90°/180° turning module, vision system and other functional modules.

• Easy to Operate, quick modeling with automatic template generation for similar products


• Compatible with a variety of products, support fast tangential conversion


• Support secondary detection in offline state, support customized report modification


• Equipped with 2 sets of screw feeder + nail cutter, it can realize the same electric batch lock with 2 different specifications of screws


• CCD system is configured for visual aid positioning


• Electric batch locking accuracy: ±5%, assembly accuracy: ±0.04mm


• Comprehensively monitor the internal production of the wire body
